2013 Ford F-250SD XLT

• Manual transfer case & hubs
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector
• 12.5K trailer hitch receiver -inc: 2" hitch
• Trailer brake controller *Compatible w/select electric over hydraulic brakes*
• 6-3/4' pickup box -inc: (4) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• 2-ton mechanical jack

• (5) LT245/75R17E all-season BSW tires
• 17" 6-spoke cast aluminum wheels -inc: bright center ornaments
• Full-size spare tire w/lock & carrier
• Chrome front bumper w/grained top cover
• Chrome rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings
• 2-bar grille w/chrome surround
• Dual beam jewel-effect headlamps
• Pickup box/cargo lights
• Underhood service light
• Manually telescoping pwr heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror
• Rear privacy glass
• Flip-out rear quarter windows
• Variable intermittent windshield wipers
• Dual rear access doors
• Front/rear license plate brackets
• Black door handles
• Removable locking tailgate w/black handle & TailGate Assist

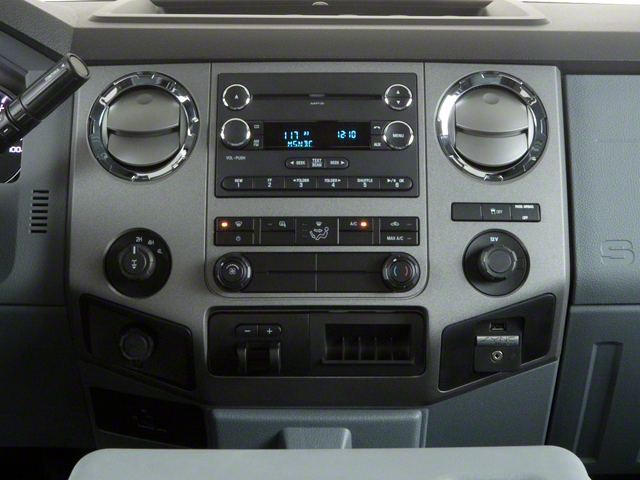

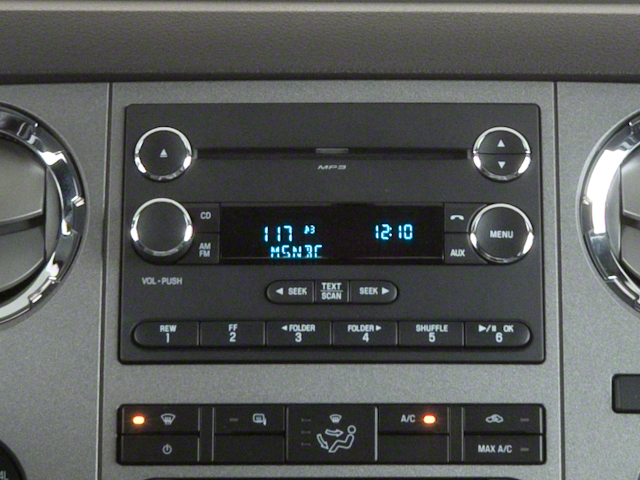

• AM/FM stereo w/CD/MP3 player -inc: clock, (4) speakers, aux audio input jack
• SYNC voice activated communications & entertainment system w/AppLink -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report (AppLink provides control of certain smart phone application using SYNC voice commands. Connect to apps like Pandora & more w/your iPhone, Blackberry or Android platform mobile phones.) *Additional SYNC services available w/annual subscription fee*

• Air conditioning w/chrome ringed black vents

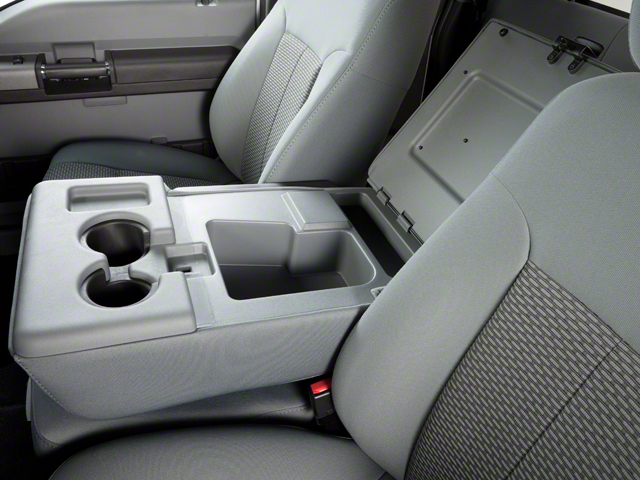

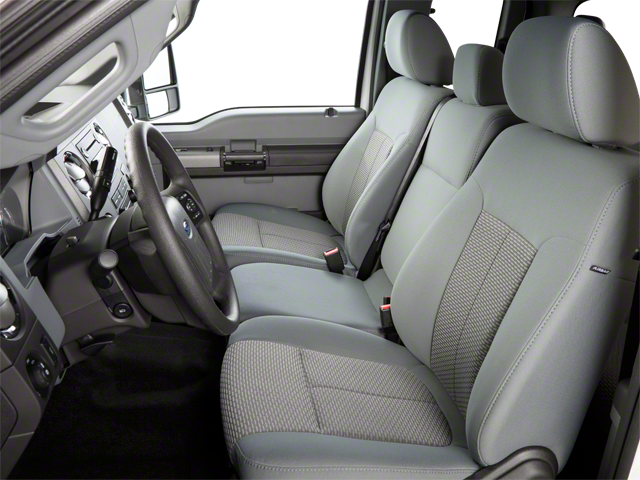

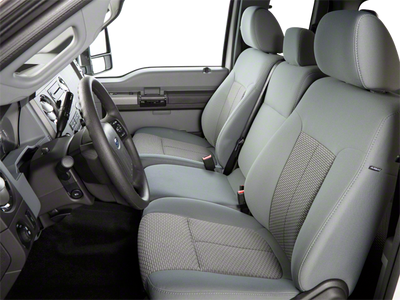

• Cloth 40/20/40 split bench front seat -inc: center armrest, cupholder, storage, center underseat storage w/aux pwr outlet
• Driver manual lumbar support
• 4-way adjustable driver/passenger headrests

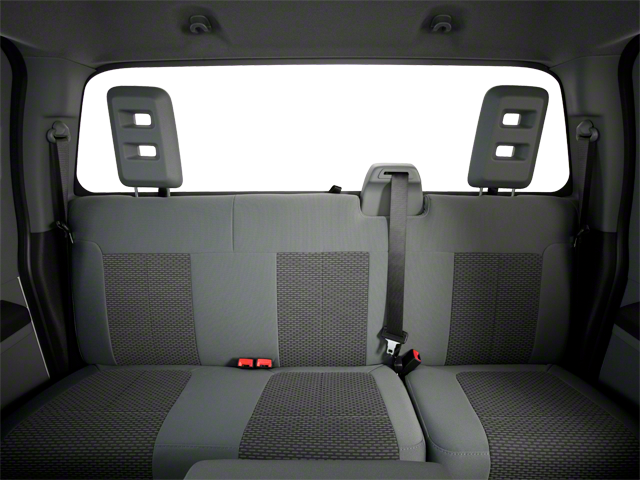

• Cloth 60/40 fold-up rear split bench seat
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates

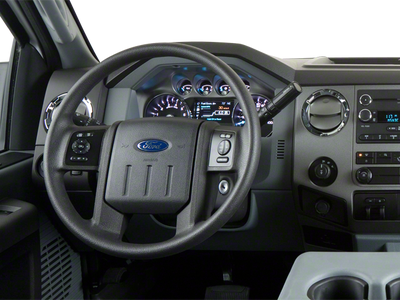

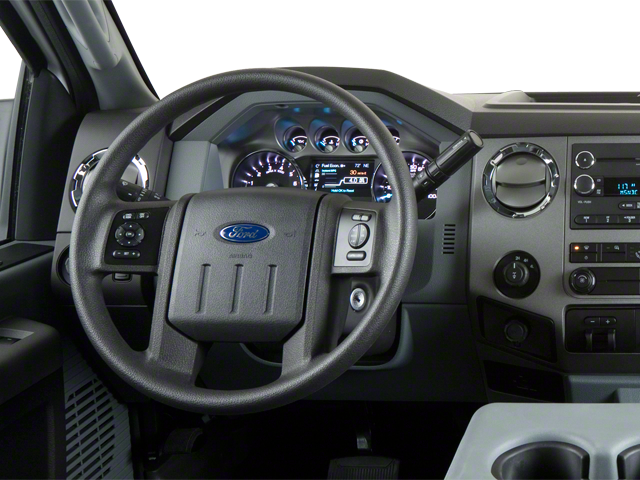

• Tilt/telescoping steering column
• Multifunction switch message center -inc: ice blue lighting, 3-button message control on steering wheel, outside temp display
• Intelligent oil life minder

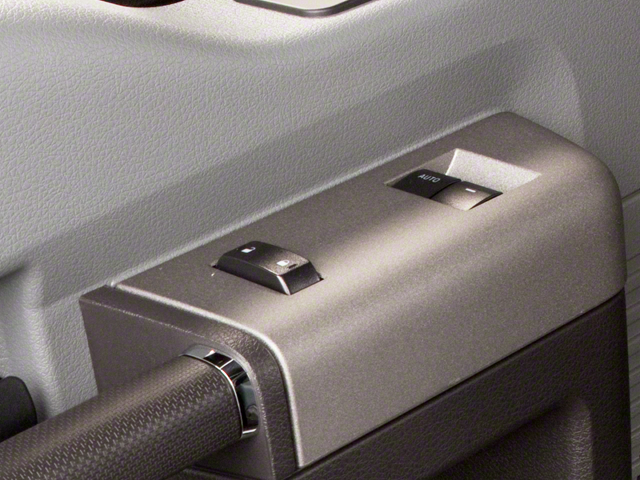

• Pwr windows w/driver one-touch-up/down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock passive anti-theft system (PATS)
• Cruise control
• 3-blink lane change signal
• (4) air registers w/positive shut-off
• Map pockets w/integrated "closed containers only" cupholders
• (2) aux pwr outlets in instrument panel
• Dash-top tray

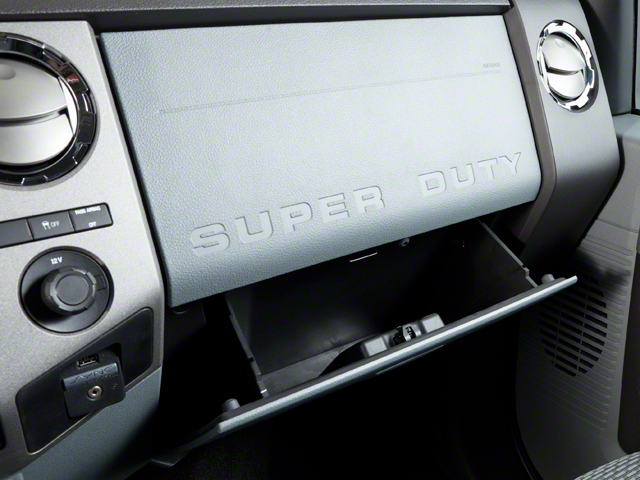

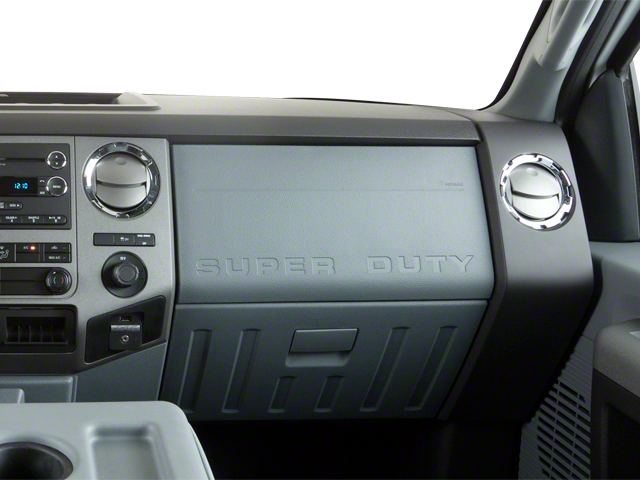

• Glove box
• Instrument panel mounted storage
• Color-keyed door trim panel -inc: color-keyed soft armrest, pwr switch bezel, molded upper applique, upper & lower map pockets, grab handle & reflector
• Overhead console
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors -inc: covered mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front map lamps
• Dual color-keyed coat hooks

• Pwr 4-wheel disc anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Hill start assist control
• Trailer sway control
• Safety Canopy system
• Driver & front passenger airbags w/passenger-side deactivation switch
• Driver & front passenger side airbag/curtain
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Front center seat integrated restraints (SIR)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, BeltMinder w/audio mute

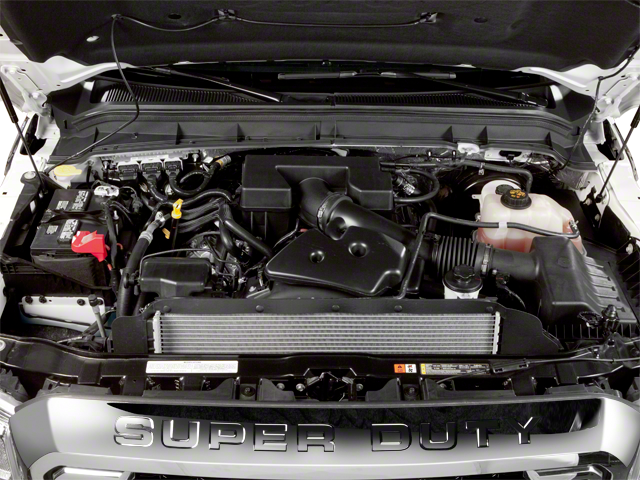

6.2L SOHC 16-VALVE EFI NA V8 FLEX-FUEL ENGINE

• (STD)

• Order Code 603A
• 3.73 Axle Ratio
• GVWR: 10,000 lb Payload Package
• 17" 6 Spoke Cast Aluminum (4) Wheels
• 18" Chrome Clad Cast Aluminum Wheels
• Cloth 40/20/40 Split Bench Seat
• XLT Value Package
• Chrome Package (DISC)
• Snow Plow Prep Package
• 4x4 Electronic-Shift-On-The-Fly
• Engine Block Heater
• PowerScope Trailer-Tow Mirrors
• Roof Clearance Lights
• Remote Start System
• Reverse Vehicle Aid Sensor
• Radio: AM/FM Stereo/Single-CD/MP3 Player
• SiriusXM Satellite Radio
• Power Adjustable Pedals
• Unique Chrome Mirror Caps
• 6" Angular Chrome Step Bars
• 6-Way Power Driver's Seat
• Auto-Lock/Auto-Unlock
• Auto-Lamp/Rain-Lamp
• SecuriCode Keyless Entry Keypad (Driver-Side)
• Fog Lamps
• Chrome Exhaust Tip
• 4 Speakers
• Front Center Armrest w/Storage
• Compass
• Variably intermittent wipers
• Turn signal indicator mirrors
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear step bumper
• Radio data system
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Passenger cancellable airbag
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• CD player
• Bumpers: chrome
• Brake assist
• Alloy wheels
• Adjustable head restraints: driver and passenger w/tilt
• AM/FM radio
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 3817
• Curb Weight - Rear (lbs): 2781
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1830
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3025
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 660
• Revolutions/Mile @ 45 mph - Rear: 660
• Revolutions/Mile @ 45 mph - Spare: 660
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.5
• Turning Diameter - Wall to Wall (ft): 49.4
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 141.8
• Length, Overall w/o rear bumper (in): 232.4
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.5
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 139.8
• Cab to Axle (in): 40.0
• Cab to End of Frame (in): 80.4
• Ground to Top of Load Floor (in): 35.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 37.6
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.5
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Ext'd Cab Cargo Volume (ft³): 39.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 38.1
• Second Leg Room (in): 31.6
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.3
• Summary
• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: Extended Cab Pickup
• Body Code: 142" WB
